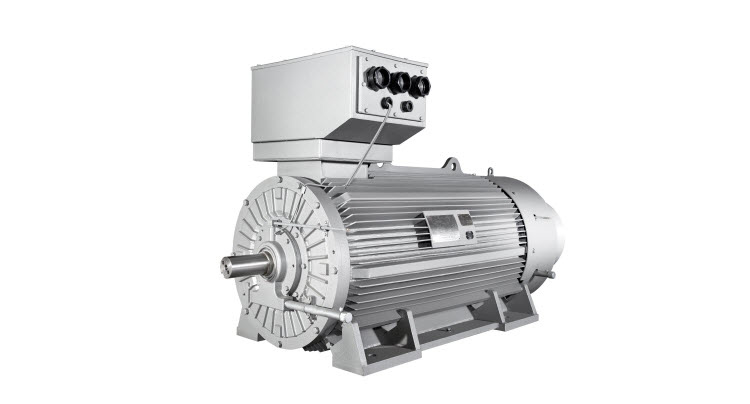

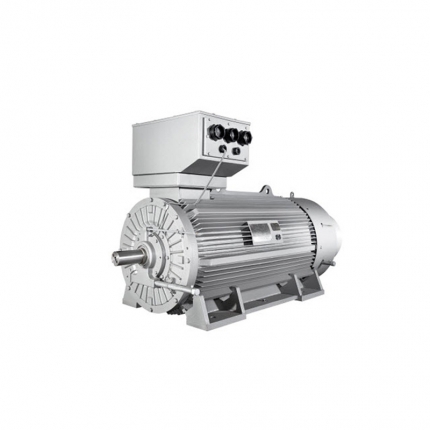

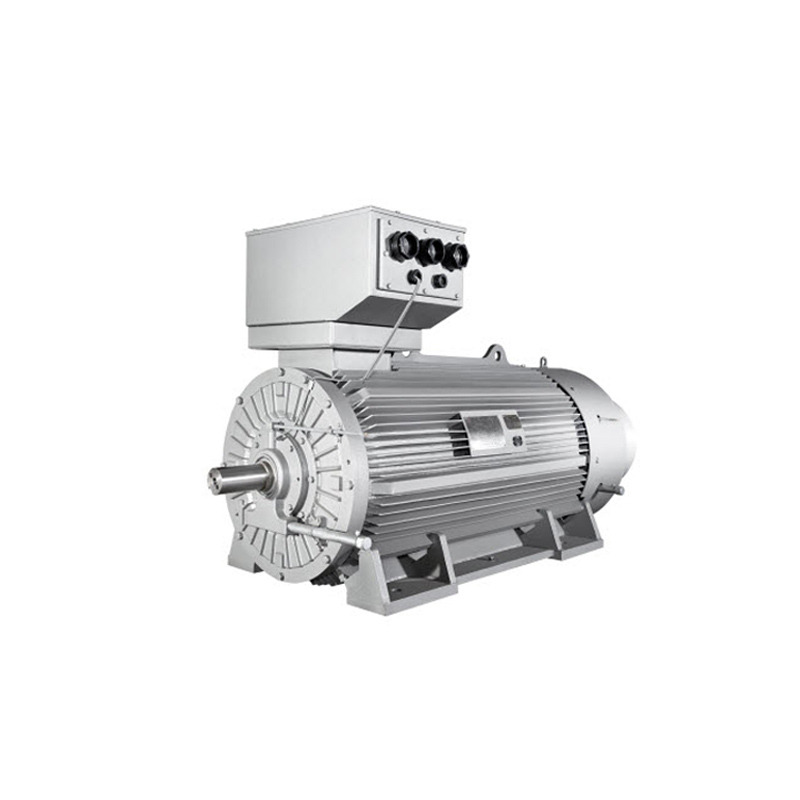

• Y2YP2系列低压大功率三相异步电动机

技术规格Specifications：

功率Power range：132~800kW

电压Voltage：380V~690V

极数Poles：2，4，6，8，10,  12

中心高Shaft height：400，450mm

热分级Thermal class：155（F）

冷却方式Cooling：IC411，IC416

防护等级Degree of protection：IP54， IP55

安装方式Mounting：IM B3， IMB35，IM V1

能效等级Efficiency：中国能效三级China Efficiency Grade 3 (GB18163-2012)

技术特点Technical Features：

Y2系列低压大功率电动机是我公司在Y系列电机的基础上研制出的使用范围更广、防护等级更高、技术性能更好、结构更紧凑的新一代产品。

Y2 series motors are new generation developed based on the Y series motors, with more wide application area, better technical performance and more compact structure.

电机转子采用笼形铜条焊接结构，有效地保证了转子整体钢性；定子绕组采用VPI真空浸漆工艺，有效地提高了绝缘强度与防潮性能。

Motor uses the strong copper bar welding rotor and the VPI stator with good insulating strength and humidity resistance.

电机主要结构件均采用消除应力退火处理工艺，减少了加工后的变形。电机采用滚动轴承，基座为钢板焊接结构。

With the main construction components which are heat treated to avoid deformation after machining, the motors use rolling bearings and the frame welded with steel plate.

YP2电机是在Y2基础上派生出的变频电机。通过特殊绝缘设计、安装强冷风扇和轴承绝缘等，可以用在变频器供电时驱动各种负载。

YP2 series motors is variable frequency motor based on Y2 series motor, with special insulation system, insulation bearing design and forcing cooling fan etc.

电机先进的模块化设计理念及灵活的选件订制，能够满足客户的各种需求。

With the advanced modular design concept and flexible options, the motors can meet the customer’s various requirements.

应用行业Application：

Y2系列低压电机可广泛应用于矿山、水泥、钢铁、通用机械、石化、化工、电力、水处理等行业，是风机、 泵、 压缩机、卷扬机、离心机、皮带机、破碎机及橡塑机械等各种机械设备的理想驱动电机。

Y2  series low voltage motors are wide used in all kinds of branch such as mining, cement, metal, general machinery, oil & gas, chemical, power, water treatment, as the ideal drive motor for various mechanical equipments such as fan, pump, compressor, windlass, centrifugal machine, belt conveyor, crusher, rubber and plastic machine.
