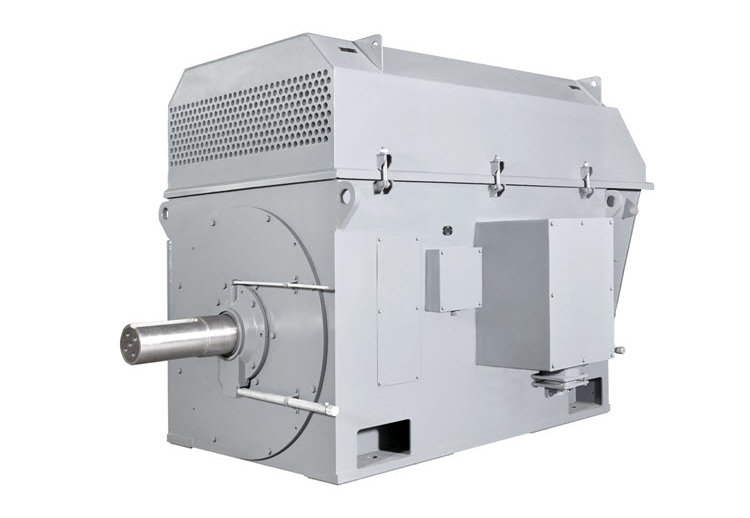

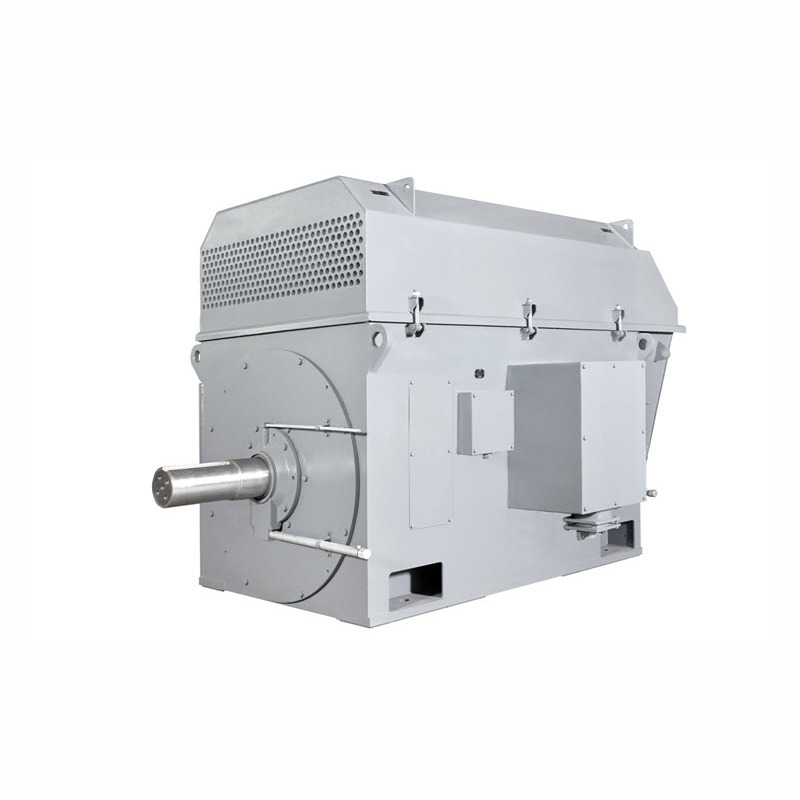

• YYKKYKS系列高压三相异步电动机

技术规格Specifications：

功率Power range：220~9000kW

电压Voltage：6kV，10kV

极数Poles：2，4，6，8，10，12，14，16，10/12，12/14，…

中心高Shaft height：355~1000mm

热分级Thermal class：155（F）

冷却方式Cooling：IC01，IC611，IC81W，IC05，IC27，IC616，IC666，IC86W

防护等级Degree of protection：IP23，IP24，IP44，IP54，IP55

安装方式Mounting：IM B3,  IM V1

技术特点Technical Features：

Y、YKK、YKS系列电机，转子采用笼形铜条焊接结构，有效地保证了转子整体钢性；定子绕组采用VPI真空浸漆工艺，有效地提高了绝缘强度与防潮性能。

Y、YKK、YKS series motor, with the strong copper bar welding rotor and the VPI stator with good insulating strength and humidity resistance.

电机壳体为钢板焊接结构，上下分体，电机主体上方通过配置不同的冷却装置，分别形成自扇冷、空/空冷和空水冷的冷却方式。

The motor frame is welded with steel plate. On the top are attached various cooling devices formed self-cooling, air/air and air/water cooling.

YXKK、YXKS系列是基于YKK、YKS的高效电机。

YXKK、YXKS series is high efficiency motor based on YKK, YKS series.

YVVF、YPKK、YPKS系列是基于Y、YKK、YKS系列的变频电机，其冷却方式分别为IC05或IC27、IC616或IC666、IC86W可选。

YVVF、YPKK、YPKS series are variable frequency motor based on Y, YKK, YKS series. The cooling type could be option IC05 or IC27, IC616 or IC 666, IC86W.

YL、YKKL、YKSL系列是基于Y、YKK、YKS系列的立式电机，其轴承及通风散热系统设计先进、可靠。

YL、YKKL、YKSL series are vertical motors based on Y，YKK，YKS series. The design of bearings and ventilation system is advanced and reliable.

YKSLT 系列是基于YKS系列的立式带轴向推力电机。

YKSLT series are vertical motors with axial thrust based on YKS.

YKKD系列是基于YKK系列的双速电机。

YKKD series are two-speed motor based on YKK series.

YTM、YHP、YMPS系列是基于YKK系列的磨煤机电机，其转子的特殊设计，使电机的启动转矩分别达到了额定转矩的1.5、2.4和2.8倍。

YTM、YHP、YMPS series are motors used for coal mill based on YKK series. The rotors are specially designed so that the starting torque reach 1.5, 2.4 and 2.8 times of rated torque.

电机先进的模块化设计理念及灵活的选件订制，能够满足客户的各种需求。

With the advanced modular design concept and flexible options, the motors can meet the customer’s various requirements,

应用行业Application：

Y、YKK、YKS系列高压电机可广泛应用于矿山、水泥、钢铁、通用机械、石化、化工、电力、水处理等行业，是风机、泵、 压缩机、卷扬机、离心机、皮带机、破碎机及橡塑机械等各种机械设备的理想驱动电机。

Y、YKK、YKS series high voltage motors are wide used in all kinds of branch such as mining, cement, metal, general machinery, oil & gas, chemical, power, water treatment, as the ideal drive motor for various mechanical equipments such as fan, pump, compressor, windlass, centrifugal machine, belt conveyor, crusher, rubber and plastic machine.
